Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lenses.

Tutorials on how to create your own rigs, pics, movies, and everything that has to do with S-3D at home!
will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

leoburton wrote:@will1384

Will, I bought the same screen as you, and I'm curious what distance your lenses are from the screen to get a good 3D effect?

Your lenses are 5Xmag/ 2inch diameter, yes?

I'm converting a Neje/Colorcross HMD (for smartphones between 4-7inches) from China.
http://www.aliexpress.com/item/Free-to- ... 63626.html

Overall, Its a good bit of kit for the price. Work perfectly with my iPhone 5s. The lenses are good enough, but I thought I could add a 7inch HDMI screen instead, for £42.

I don't know what magnification the lenses are, it doesn't say, but the focal distance to the screen is 2.5 inches. At that distance , the Tridef settings are too far apart. I'm duplicating screens, but windows keeps filling the monitor edge-to-edge when I reduce the resolution on the games. But if I turn the monitor itself, to 4:3 it matches up, its just very stretched.

BUT when I watch a vorpx video through youtube, it fits perfectly!! I think because it's smaller in size. Whereas Tridef is two full halves of the screen.
Unfortunately I can't get the Oculus plugin for Tridef to work. Games keep crashing. Otherwise that might do it.

Don't know if I need to change the lenses that came with it, or order a 5.6inch screen instead. (because I like the form and build quality of the Neje as a base unit)[/url]
Someone else had asked the distance from the lens to the screen and I took a small tape measure to check and it was right at 2 inches, the lenses I used are 5X and 2 inch diameter.

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

I was making up a EDID spoofer for a friend, so I ordered this cable:

"AmazonBasics HDMI to DVI Adapter Cable - 9.8 Feet"

http://www.amazon.com/dp/B001TH7T2U

when I cut it open, the wires not wrapped in foil are:

Red = Not Connected
Yellow = DVI Pin (14) +5
Gray = DVI Pin (7) Data EDID
Black = Not Connected
Orange = DVI Pin (15) Ground
White = DVI Pin (16) Hot Plug
Purple = DVI Pin (6) Clock EDID

The colors may change, but thats how my cable was wired.

User avatar
Sipheren
One Eyed Hopeful
Posts: 10
Joined: Thu Jun 26, 2014 4:05 am
Which stereoscopic 3D solution do you primarily use?: Head Mounted Display (HMD)
Location: Gold Coast - Australia
Contact:

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by Sipheren »

will1384 wrote:EDID spoofer

Has there been any progress on the EDID spoofer with the SDK?

I have built my own HMD and tried to put together a EDID spoofer but it doesn't seem to work. The LCD turns on and shows my desktop but the Oculus Config doesn't show anything, in Device Manager the second LCD just shows as a Non-Standard PlugnPlay monitor.

I used the software you linked to show current devices but even when the LCD is plugged in it doesn't show up in the Monitor section.

I will take some pics of what I have done tonight and upload my EDID files, maybe I have missed something simple.

Cheers

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

Sipheren wrote:
will1384 wrote:EDID spoofer

Has there been any progress on the EDID spoofer with the SDK?

I have built my own HMD and tried to put together a EDID spoofer but it doesn't seem to work. The LCD turns on and shows my desktop but the Oculus Config doesn't show anything, in Device Manager the second LCD just shows as a Non-Standard PlugnPlay monitor.

I used the software you linked to show current devices but even when the LCD is plugged in it doesn't show up in the Monitor section.

I will take some pics of what I have done tonight and upload my EDID files, maybe I have missed something simple.

Cheers

I have made 3 EDID spoofers, if you count the first one I had to rebuild, all have worked, if your EDID spoofer is not working, make sure its getting the 5v from USB, double check the wiring, power the chip up first before plugging the video cable into the computer, on my EDID spoofer I plug the USB cable into the computer before I plug the video cable into the computer, also the new-er Oculus rift SDKs may interfere with a DIY Rift, I am using the Oculus Rift SDK version 0.2.5.

Another thing to note, I am using a DVI to HDMI cable, I still have not tried a HDMI to HDMI cable.

User avatar
Sipheren
One Eyed Hopeful
Posts: 10
Joined: Thu Jun 26, 2014 4:05 am
Which stereoscopic 3D solution do you primarily use?: Head Mounted Display (HMD)
Location: Gold Coast - Australia
Contact:

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by Sipheren »

will1384 wrote:
Sipheren wrote:
will1384 wrote:EDID spoofer

Has there been any progress on the EDID spoofer with the SDK?

I have built my own HMD and tried to put together a EDID spoofer but it doesn't seem to work. The LCD turns on and shows my desktop but the Oculus Config doesn't show anything, in Device Manager the second LCD just shows as a Non-Standard PlugnPlay monitor.

I used the software you linked to show current devices but even when the LCD is plugged in it doesn't show up in the Monitor section.

I will take some pics of what I have done tonight and upload my EDID files, maybe I have missed something simple.

Cheers

I have made 3 EDID spoofers, if you count the first one I had to rebuild, all have worked, if your EDID spoofer is not working, make sure its getting the 5v from USB, double check the wiring, power the chip up first before plugging the video cable into the computer, on my EDID spoofer I plug the USB cable into the computer before I plug the video cable into the computer, also the new-er Oculus rift SDKs may interfere with a DIY Rift, I am using the Oculus Rift SDK version 0.2.5.

Another thing to note, I am using a DVI to HDMI cable, I still have not tried a HDMI to HDMI cable.
Thanks for the reply, I will go over the wiring again and see if anything is wrong. Maybe I need to get a DVI to HDMI cable and try that.
2014-09-03 18.07.54.jpg
2014-09-03 18.08.08.jpg
You do not have the required permissions to view the files attached to this post.

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

Sipheren wrote: Thanks for the reply, I will go over the wiring again and see if anything is wrong. Maybe I need to get a DVI to HDMI cable and try that.
I tend to over look stuff like this but here is how my DVI to HDMI EDID spoofer is wired up.

DVI Pin (6) Clock EDID ------------------ Connected from the EDID spoofer to computer, not connected to the LCD.
DVI Pin (7) Data EDID ------------------ Connected from the EDID spoofer to computer, not connected to the LCD.
DVI Pin (14) +5 ------------------ Connected from computer to LCD, is not used by the EDID spoofer.
DVI Pin (15) Ground ------------------ Connected from computer to LCD, but is also connected to USB and the EDID spoofer.
DVI Pin (16) Hot Plug ------------------ Connected from computer to LCD, is not used buy the EDID spoofer.
USB Pin (1) +5 ------------------ Connected to the EDID spoofer, powers the chip.
USB Pin (4) Ground ------------------ Connected to the EDID spoofer, connected to the LCD, connected to the computer.
Everything else is connected from computer to LCD.

I also wonder if the Hot Plug pin might be the source of problems for some when using HDMI, I had found a circuit diagram over at

http://www.harbaum.org/till/dvi2par/index.shtml

that showed an 100 ohm resistor between HDMI Pin-19 Hot Plug Detect and HDMI Pin-18 +5v, I am not sure if that would help or not.

leoburton
One Eyed Hopeful
Posts: 6
Joined: Mon Jul 28, 2014 7:25 am

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by leoburton »

will1384 wrote:
leoburton wrote:@will1384

Someone else had asked the distance from the lens to the screen and I took a small tape measure to check and it was right at 2 inches, the lenses I used are 5X and 2 inch diameter.

Thanks for your answer Will.
I think I will try some pocket magnifying lenses.

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

will1384 wrote:
Sipheren wrote: Thanks for the reply, I will go over the wiring again and see if anything is wrong. Maybe I need to get a DVI to HDMI cable and try that.
I tend to over look stuff like this but here is how my DVI to HDMI EDID spoofer is wired up.

DVI Pin (6) Clock EDID ------------------ Connected from the EDID spoofer to computer, not connected to the LCD.
DVI Pin (7) Data EDID ------------------ Connected from the EDID spoofer to computer, not connected to the LCD.
DVI Pin (14) +5 ------------------ Connected from computer to LCD, is not used by the EDID spoofer.
DVI Pin (15) Ground ------------------ Connected from computer to LCD, but is also connected to USB and the EDID spoofer.
DVI Pin (16) Hot Plug ------------------ Connected from computer to LCD, is not used buy the EDID spoofer.
USB Pin (1) +5 ------------------ Connected to the EDID spoofer, powers the chip.
USB Pin (4) Ground ------------------ Connected to the EDID spoofer, connected to the LCD, connected to the computer.
Everything else is connected from computer to LCD.

I also wonder if the Hot Plug pin might be the source of problems for some when using HDMI, I had found a circuit diagram over at

http://www.harbaum.org/till/dvi2par/index.shtml

that showed an 100 ohm resistor between HDMI Pin-19 Hot Plug Detect and HDMI Pin-18 +5v, I am not sure if that would help or not.
I also found a link that shows using a 1K resistor between "DVI Pin (14) +5" and "DVI Pin (16) Hot Plug"

http://philtechnicalblog.blogspot.com/2 ... ilema.html

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

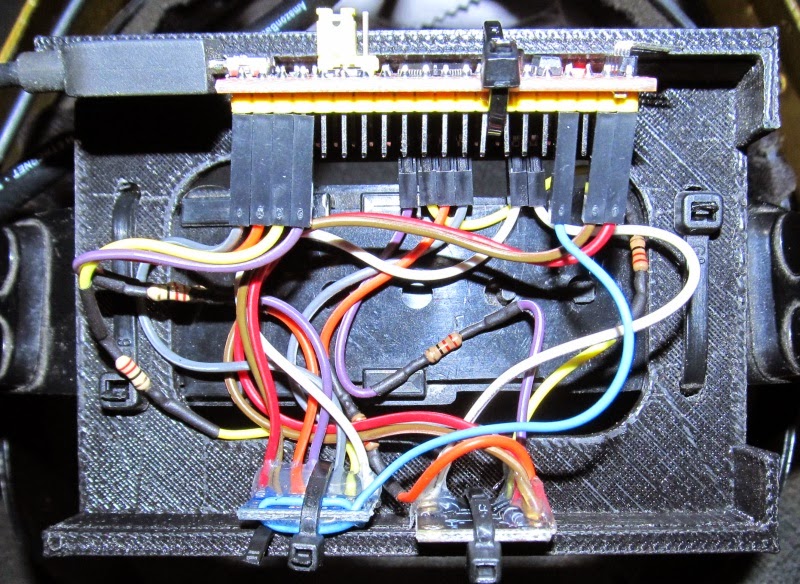

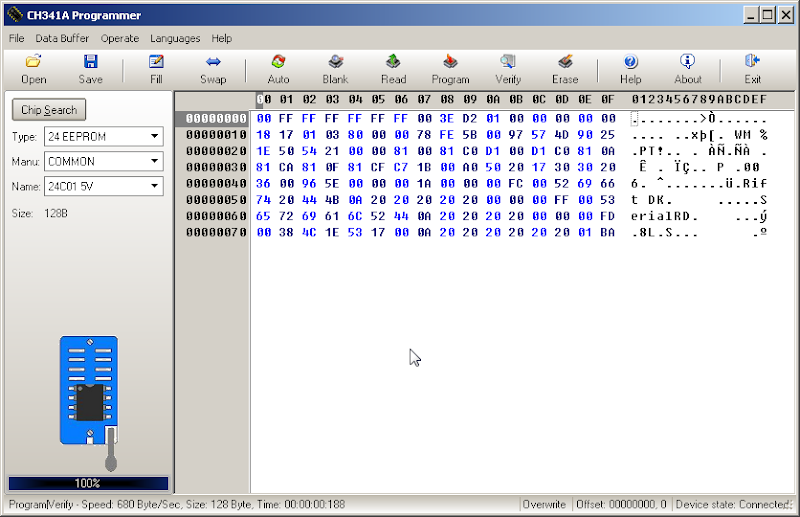

I had made up a EDID spoofer for a friend and it was not working for them, but I had used the same EDID spoofer on my computer for about a day to test it, and it was working, so I decided to spend some time working on the problem and found that my EDID spoofer was "hit or miss" and was not very compatible, so I got looking at a few different designs and went with this design

http://www.harbaum.org/till/dvi2par/index.shtml

I also use a different chip now, the 24LC21.

I was able to get this working on 3 different computers, and you should be able to use PowerStrip and the old DOS EDID software to flash the chip with out the programmer, just be careful not to flash your desktop monitor by mistake.
You do not have the required permissions to view the files attached to this post.

GOD
One Eyed Hopeful
Posts: 41
Joined: Thu Jul 03, 2014 2:13 am

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by GOD »

Thanks for posting the new design! :D Does it work with most recent SDK?

By the way, 7" 1200p panels are now available at: www.mkt.com/vronline

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

GOD wrote:Thanks for posting the new design! :D Does it work with most recent SDK?

By the way, 7" 1200p panels are now available at: http://www.mkt.com/vronline
I am still not sure why the DIY Rift setup is not working with the new SDK, it could even be the tracker, both the tracker and EDID store information about the Rift, so I am just not sure at this point, I had to find a different EDID spoofer design because it did not seem to be compatible with very many video cards, the new design works on every video card I had, but it still fails to work wit the new SDK.

llluis
One Eyed Hopeful
Posts: 11
Joined: Tue May 27, 2014 11:50 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by llluis »

will1384 wrote:I am still not sure why the DIY Rift setup is not working with the new SDK, it could even be the tracker, both the tracker and EDID store information about the Rift, so I am just not sure at this point, I had to find a different EDID spoofer design because it did not seem to be compatible with very many video cards, the new design works on every video card I had, but it still fails to work wit the new SDK.
The problem is the STM32F3Discovery firmware from Yetifrisstlama.
The new SDK requests (and sets) more information not supported by its firmware, but present in the original. The detection then fails.

llluis
One Eyed Hopeful
Posts: 11
Joined: Tue May 27, 2014 11:50 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by llluis »

Sipheren wrote:
2014-09-03 18.07.54.jpg
Is this your board? Is it a VST29.01B? Are you using the 1280x800 panel (N070ICG-LD1)?

User avatar
Sipheren
One Eyed Hopeful
Posts: 10
Joined: Thu Jun 26, 2014 4:05 am
Which stereoscopic 3D solution do you primarily use?: Head Mounted Display (HMD)
Location: Gold Coast - Australia
Contact:

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by Sipheren »

Since the dk1 has now been open sourced, hopefully someone will be able to get the tracker to function correctly....

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

llluis wrote:The problem is the STM32F3Discovery firmware from Yetifrisstlama.
The new SDK requests (and sets) more information not supported by its firmware, but present in the original. The detection then fails.
Thats what I am thinking now also.

llluis wrote:
Sipheren wrote:
2014-09-03 18.07.54.jpg
Is this your board? Is it a VST29.01B? Are you using the 1280x800 panel (N070ICG-LD1)?
I am not sure what Sipheren is using but I am using a N070ICG-LD1 LCD and I believe a VS-TY2662-V1.

User avatar
Sipheren
One Eyed Hopeful
Posts: 10
Joined: Thu Jun 26, 2014 4:05 am
Which stereoscopic 3D solution do you primarily use?: Head Mounted Display (HMD)
Location: Gold Coast - Australia
Contact:

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by Sipheren »

llluis wrote:
Sipheren wrote:
2014-09-03 18.07.54.jpg
Is this your board? Is it a VST29.01B? Are you using the 1280x800 panel (N070ICG-LD1)?
I am using the A.VST29.01B board and HV056WX1-100 LCD.

GOD
One Eyed Hopeful
Posts: 41
Joined: Thu Jul 03, 2014 2:13 am

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by GOD »

Selling a 7" 1200p (1200x1920) LCD with an HDMI board (Toshiba chip). And including an STM32F3Discovery board with firmware for up to rift SDK 0.3 (basically for free, considering that the panel and HDMI board was previously $199)
:woot :woot :woot :woot
PM for more info. Can also include a free eeprom chip. Total without shipping costs is $199. Shipping is from near HK though. Been too busy to bother with this too much. And I am working on a 1440p HMD anyway.

Only one unit available at this price.

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

I and a few others had noticed DK1 trackers for sale in china after the DK1 open source files were released, I cant buy anything from china, so I decided to look for something with the same sensors, I found that the Naze32 10DOF multicopter flight control board uses the same CPU and sensors, so I got one and flashed it with the firmware from the DK1 open source files, unfortunately I had to add a second USB connector to the Naze32 10DOF, the second USB connector is wired to the STM32F103 CPU in the same way has the DK1 Tracker, once the second USB connector is connected to the computer, the computer recognizes it as a real DK1 Tracker, in both the old and new SDKs, but with one catch, no tracking, I believe the sensors are connected to the STM32F103 CPU on the Naze32 10DOF in a different way than on the real DK1 tracker.

The 10DOF version of the multicopter flight control board above uses the:

MPU6050 - gyroscope and accelerometer
HMC5883L - magnetometer
MS5611 - high resolution altimeter
STM32F103CxT6 - CPU 32bit ARM Cortex M3, 72MHz, 64K/128K flash

The 6DOF version of the multicopter flight control board above uses the:

MPU6050 - gyroscope and accelerometer
STM32F103CxT6 - CPU 32bit ARM Cortex M3, 72MHz, 64K/128K flash

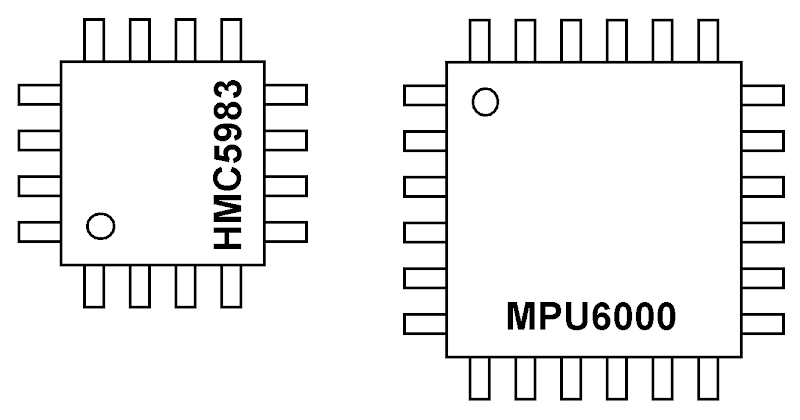

And the real DK1 Rift tracker uses:

MPU6000 - gyroscope and accelerometer
HMC5983 - magnetometer
STM32F103C8T6 - CPU 32bit ARM Cortex M3, 72MHz, 64K/20K flash


The Naze32 10DOF top view.


The bottom of the Naze32 10DOF.


I added jumpers for the boot pins.

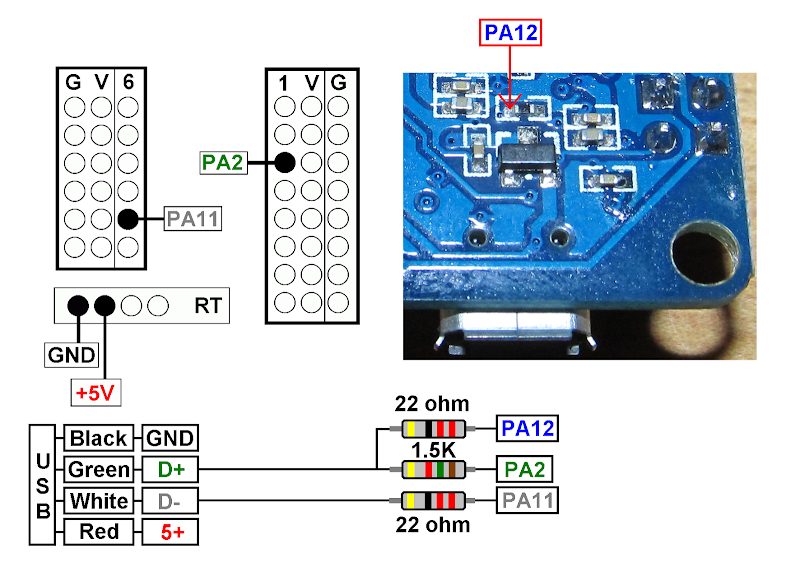

I used a volt / ohm meter to trace back to the needed CPU pins, the extra USB port is connected with the same value resistors and same connections as the real DK1 tracker.


This is the USB port I added.


DK2 compatible SDK running with the Naze32 10DOF, however you get no tracking.


DK1 only SDK running with the Naze32 10DOF, however you get no tracking.



BTW Under Linux when connected to the second added USB port, and programed with the DK1 Rift tracker firmware, the Naze32 10DOF shows up as:

T: Bus=03 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#= 34 Spd=12 MxCh= 0
D: Ver= 2.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS=64 #Cfgs= 1
P: Vendor=2833 ProdID=0001 Rev=00.18
S: Manufacturer=Oculus VR, Inc.
S: Product=Tracker DK
S: SerialNumber=AAAAAAAAAAAA
C: #Ifs= 1 Cfg#= 1 Atr=a0 MxPwr=100mA
I: If#= 0 Alt= 0 #EPs= 1 Cls=03(HID ) Sub=00 Prot=00 Driver=usbhid

And the last time I checked the STM32F3DISCOVERY Foculus Rift tracker under Linux:

T: Bus=06 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#= 6 Spd=12 MxCh= 0
D: Ver= 2.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS=64 #Cfgs= 1
P: Vendor=2833 ProdID=0001 Rev=01.00
S: Manufacturer=Oculus VR, Inc.
S: Product=Tracker DK
S: SerialNumber=3EC0946BFFFF
C: #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr=500mA
I: If#= 0 Alt= 0 #EPs= 2 Cls=03(HID ) Sub=00 Prot=00 Driver=usbhid

I have not done anything to the Naze32 10DOF that is not undo-able yet, and I would like to keep it that way, but I don't know how to do programing, so my only other choices are, to modify the Naze32 10DOF, wait until DK1 compatible trackers are more readily available, or the hard way and order the parts and have a PCB made using the DK1 open source files.

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

From Google searching and PDFs I have downloaded, it seems that:

MPU6000 - supports both I2C and SPI
MPU6050 - supports only I2C

HMC5983 - supports both I2C and SPI
HMC5883L - supports only I2C

and the DK1 Rift tracker uses SPI to connect to the sensor chips.

After the Naze32 I got an idea, so I stared searching and found that could buy the STM32F103C8T6, HMC5983 and MPU6000 on breakout boards, but the MPU6000 is hard to find and can be costly, the HMC5983 seems to only be avable from china, and the STM32F103C8T6 breakout board requires a programmer, that programmer can be cheap if you buy a clone or $30 for the real ST-Link V2, you would then connect the different breakout boards together with soldered wires and a few 22 ohm resistors, using the DK1 tracker schematics as your guide, and then use the programmer to flash the STM32F103C8T6 with the DK1 tracker firmware.

I would think the parts would be something like this:

ST-LINK/V2 ---- $20 to $30

http://www.st.com/internet/evalboard/product/251168.jsp

STM32F103C8T6 Minimum System Development Board ---- $7 - or leas

http://www.ebay.com/itm/251714608200

HMC5983 board ---- $3 - slow shipping from China

http://www.ebay.com/itm/GY-282-HMC5983- ... 1431883394

MPU-6000 IMU click board ---- $39 - this board requires soldering of SMD parts to switch between I2C and SPI

http://microcontrollershop.com/product_ ... ts_id=6699

OR

MPU-6000 board - $15 - cheaper but from France and no soldering of SMD parts

http://www.ebay.com/itm/IMU-6DOF-MPU600 ... 1313774726

I am sure there are other combinations of parts like this that will work, this is just what some Google searching found.

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

I made some diagrams for the three boards I found at eBay:

STM32F103C8T6 Minimum System Development Board

IMU 6DOF - MPU6000 Invensense sensor board - make sure its a real MPU-6000 and not a MPU-6050

GY-282 HMC5983

This is the STM32F103C8T6 Minimum System Development Board and GY-282 HMC5983 connected, I am not sure about the HMC5983's PIN-9, the real Rift tracker has the HMC5983's PIN-9 connected to the STM32F103C8T6's PB9, but the GY-282 HMC5983 board has the HMC5983's PIN-9 connected to ground, I may have to cut a trace on the GY-282 HMC5983 to disconnect the HMC5983's PIN-9 from GND, and then run a wire from the HMC5983's PIN-9 to the STM32F103C8T6's PB9.


This is the STM32F103C8T6 Minimum System Development Board and the IMU 6DOF - MPU6000 Invensense sensor board connected.


will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

The STM32F103C8T6 Minimum System Development Board I got from eBay, I just wish the pin headers were left unsoldered, I was able to program this with the Rift tracker firmware, and it was detected as a real DK1 by the DK2 compatible SDK.



This is how I attached the programmer to the STM32F103C8T6 Development Board, its the same wiring setup as seen on some of the Chinese web pages selling STM32F103C8T6 Development Board, you also need to power the STM32F103C8T6 Development Board with the USB plug.


BTW I had to set the programmer to "SWD"

Link to an eBay page showing a programmer attached to the STM32F103C8T6 Development Board.

http://www.ebay.com/itm/STM32F103C8T6-A ... 1422143770

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

ST-Link V2 connected to the STM32F103C8T6 Development Board.


Set the "STM32 ST-Link Utility" to SWD mode, I used the default settings and they seem to work fine.


Update the programmers firmware first if you can, but -do not- if you bought a clone or knock-off because updating the firmware on a clone could brick the device.

Open the "tracker.hex" then run a "Full chip erase." after that run a "Program verify." and you should be finished.


I wanted to add a link I found that might be helpful

http://www.emcu.it/ST-LINKv2/ST-LINKv2.html

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

This is the default configuration of the GY-282 HMC5983 board, its set to I2C mode with solder jumpers.


This is the GY-282 HMC5983 board, with no solder jumpers.


I "think" this is the correct way to set the GY-282 HMC5983 board to SPI mode with solder jumpers.


This is the front of the GY-282 HMC5983 board, its set to I2C mode with solder jumpers from the factory.


This is the back of the GY-282 HMC5983 board.


The real Rift tracker has the HMC5983's PIN 9 going to the PB9 PIN of the STM32F103C8T6, but the GY-282 has the HMC5983's pin 9 going to GND, to fix that I used a "very" small drill to remove a "very" small amount of copper on the back of the GY-282, has shown.


Then on the top of the GY-282 remove some of the blue paint covering the copper, in the location shown, work very slowly, its very fragile, then solder your wire to that place, you might want to glue the wire in place, if you don't, the wire could pull lose tearing the copper its soldered to, damaging the board.


This is not an accurate circuit diagram, its just a simple drawing to help show were the HMC5983's PIN 9 is connected, the PCB trace in red is connected to PIN 9, this PCB trace shown in red is also were you would connect a wire going to the STM32F103C8T6's PB9.


The bottom of the GY-282 with hot glue on the wires.


The top of the GY-282 with hot glue on the wires.

Last edited by will1384 on Tue Feb 17, 2015 5:40 pm, edited 1 time in total.

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

I got the MPU-6000 board in today, and it works :)


Top:


Bottom:


Hot glue:


Wires:


The HMC5983, MPU-6000, and STM32F103C8T6.


I replaced the STM32F3DISCOVERY


The HMC5983 and MPU-6000 sensor need to be arranged the way they were in the real rift, with the chip label facing the user, and the MPU-6000 dot indicator on the left and at the top, and with the HMC5983 dot indicator at the left and the bottom, I got that info from:

https://www.ifixit.com/Device/Oculus_Rift

And how I have the sensors placed:


It does work with some of the steam games, like "AaaaaAAaaaAAAaaAAAAaAAAAA!!!" and I was able to play "SightLine: The Chair" that was a DK2 and DK1 compatible game, also the DK2 compatible Configuration Utility shows it has a real DK1, however the magnetic calibration fails showing this:


It may be that the HMC5983 is not working, but I am able to finish the magnetic calibration in the DK1 only Configuration Utility.

Something interesting is that the MPU-6000 and STM32F103C8T6 seem to work well as a tracker without the HMC5983, but my guess is you would get some drift.

User avatar
cybereality
3D Angel Eyes (Moderator)
Posts: 11394
Joined: Sat Apr 12, 2008 8:18 pm
Which stereoscopic 3D solution do you primarily use?: S-3D desktop monitor

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by cybereality »

Cool man!

I wouldn't worry about the mag calibration. It's been broken for DK1 since the past few runtime releases (0.3.2 may be the last one that works).

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

cybereality wrote:Cool man!

I wouldn't worry about the mag calibration. It's been broken for DK1 since the past few runtime releases (0.3.2 may be the last one that works).
Thanks for the information, I am now wondering about the necessity of the HMC5983, it was the hardest to solder with the solder jumpers and that extra wire that requires modifying the HMC5983 board, I wonder if they have they stopped using the HMC5983, and gone to something in software, like averaging were you look to keep drift down, or is it a little of both the HMC5983 and software that corrects for drift, I wonder this because I was able to play a few demos without the HMC5983 and the tracking "seemed" just as good as the STM32F3DISCOVERY, but I only played a few minutes for each game.

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

A few people have asked about the DK1 firmware, so I decided to put the firmware with the all the open-source Oculus Rift DK1 files, because I was unsure of the legality of sharing the made firmware by its self, however this makes the download a little over 12MB, I changed nothing other than adding a folder with the pre-made firmware and a TXT file explaining what I just said, and the edit needed to the Tracker.coproj file.

https://www.amazon.com/clouddrive/share ... 94dcqmCrPc

If needed I will take this link down, I don't want to get in legal trouble :?

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

I uploaded a short video of the new tracker working.

https://picasaweb.google.com/1113484813 ... 0339389730

spyfeedback
One Eyed Hopeful
Posts: 1
Joined: Mon Feb 16, 2015 6:59 am

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by spyfeedback »

Here is my tracker:

Thank you Will!!! :)

I have a litle drift so I ordered the HMC P.c.b.

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

spyfeedback wrote:Here is my tracker:
Thank you Will!!! :)

I have a litle drift so I ordered the HMC P.c.b.
Looks good :)

I have tried a few different experiments with the HMC5983 board, testing drift with and without the board, and even even removing some resistors labeled "472" on the HMC5983 board that are not in the Rift tracker schematics, rob712 over on reddit pointed them out to me, but nothing seems to make much of a difference.

[copy and paste from my reddit post]

I have two of the HMC5983 boards, I modified the second HMC5983 board to be the same as the first except I removed the 4.7K resistors:


I tested for drift in the Oculus Rift 0.2.5 SDK using the "Interactive Utility" and "Settings Viewer" with the resistors in place I was getting about 2 centimeters of drift to the right in 60 seconds, without the resistors I was getting 1.5 centimeters of drift to the left in 60 seconds, that is not a good test, but I did not know a better way to test.

With and without the resistors, I get crashes with the newer DK1 /DK2 SDK configuration utility when clicking on the "Show Demo Scene" button, and Magnetic Calibration fails on the newer DK1 /DK2 SDK.

I did the test again with the HMC5983 board unplugged, I tested for drift in the Oculus Rift 0.2.5 SDK using the "Interactive Utility" and "Settings Viewer" I got 1.5 centimeters of drift to the left in 60 seconds, same as when its connected, but this time Magnetic Calibration fails on both SDKs, and it still crashes with the newer DK1 /DK2 SDK configuration utility when clicking on the "Show Demo Scene" button.

weebles
One Eyed Hopeful
Posts: 1
Joined: Mon Jan 12, 2015 10:35 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by weebles »

Hey Will
thanks for all the work.

Do you think the STM32F103C8T6 could be flashed with the STM32f3DISCOVERY board ?


Also just saw this video about Chinese dk 1 tracker clone.

https://www.youtube.com/watch?feature=p ... GHsLa7S0KU
Its hard to hear him though.

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

weebles wrote:Hey Will
thanks for all the work.

Do you think the STM32F103C8T6 could be flashed with the STM32f3DISCOVERY board ?


Also just saw this video about Chinese dk 1 tracker clone.

https://www.youtube.com/watch?feature=p ... GHsLa7S0KU
Its hard to hear him though.
I and others have tried flashing the real Rift tracker firmware to the STM32f3DISCOVERY board, it does not seem to work.

I am glad they are starting to clone the DK1.

atomdude
One Eyed Hopeful
Posts: 11
Joined: Tue Sep 10, 2013 6:22 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by atomdude »

HI

i am building my own HMD. but i am stuck at the software, which application i should download to get it to work???? please help i am desperate!!!

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

atomdude wrote:HI

i am building my own HMD. but i am stuck at the software, which application i should download to get it to work???? please help i am desperate!!!
Are you asking about the STM32f3DISCOVERY tracker, or the DK1 clone tracker I made, or the EDID for the LCD, or the DK1 demos?

I only remember flashing the STM32f3DISCOVERY with Linux following the guide over at:

https://github.com/yetifrisstlama/Focul ... 3DISCOVERY

I believe there is software for Windows that should work for the STM32f3DISCOVERY and the ELF or HEX version of the firmware, maybe do a Google search for "STM32f3DISCOVERY ELF HEX".

For the DK1 clone tracker I made, I used the STM32 ST-Link Utility software that came with the ST-LINK/V2 programmer, the software was set to SWD mode, and all other settings default.

EDID for the LCD is a little more tricky, I tried messing with the LCD controller but from what I remember that did not work, I seem to remember needing a special programmer just for the LCD controller, so basically I bypassed the LCD controller's EDID chip with my own EDID chip, near the end of my tinkering I used this cheap $9 CH341A programmer that can be used to program the 24LC21 chip I was using for EDID


to program the 24LC21 chip with the CH341A programmer, the 24LC21 chip's (PIN 7) must be connected to the CH341A programmer's pin named (3.3), also when using this CH341A programmer the IC chip's notch faces away from the USB port, 24xx chips are placed closest to the end of the programmer, 25xx chips are placed closest to the USB port.

BTW the jumper close to the USB port switches between Printer or Serial mode, each mode requires a different driver, the software I used that came with the CH341A programmer seems to only work with the Printer mode.


CH341A programmer's software setup for the 24LC21 chip.

STM32f3DISCOVERY works with most DK1 compatible demos and software.

The the DK1 clone trackers, the one I made and the Chinese clones should work with everything, even DK2 demos, "however" that also seems to depend on your video card, it seems that some stuff needs DX11, apparently most of the DK2 demos I happened to download and try needed DX11 :? , so if you have an older video card some of the demos and software may unexpectedly crash or not run, another problem I was facing and did not realise :lol:

For some of the Oculus Rift games and demos you will need the "Oculus Runtime for Windows" get that over at:

https://developer.oculus.com/downloads/

atomdude
One Eyed Hopeful
Posts: 11
Joined: Tue Sep 10, 2013 6:22 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by atomdude »

will1384 wrote:
atomdude wrote:HI

i am building my own HMD. but i am stuck at the software, which application i should download to get it to work???? please help i am desperate!!!
Are you asking about the STM32f3DISCOVERY tracker, or the DK1 clone tracker I made, or the EDID for the LCD, or the DK1 demos?

I only remember flashing the STM32f3DISCOVERY with Linux following the guide over at:

https://github.com/yetifrisstlama/Focul ... 3DISCOVERY

I believe there is software for Windows that should work for the STM32f3DISCOVERY and the ELF or HEX version of the firmware, maybe do a Google search for "STM32f3DISCOVERY ELF HEX".

For the DK1 clone tracker I made, I used the STM32 ST-Link Utility software that came with the ST-LINK/V2 programmer, the software was set to SWD mode, and all other settings default.

EDID for the LCD is a little more tricky, I tried messing with the LCD controller but from what I remember that did not work, I seem to remember needing a special programmer just for the LCD controller, so basically I bypassed the LCD controller's EDID chip with my own EDID chip, near the end of my tinkering I used this cheap $9 CH341A programmer that can be used to program the 24LC21 chip I was using for EDID


to program the 24LC21 chip with the CH341A programmer, the 24LC21 chip's (PIN 7) must be connected to the CH341A programmer's pin named (3.3), also when using this CH341A programmer the IC chip's notch faces away from the USB port, 24xx chips are placed closest to the end of the programmer, 25xx chips are placed closest to the USB port.

BTW the jumper close to the USB port switches between Printer or Serial mode, each mode requires a different driver, the software I used that came with the CH341A programmer seems to only work with the Printer mode.


CH341A programmer's software setup for the 24LC21 chip.

STM32f3DISCOVERY works with most DK1 compatible demos and software.

The the DK1 clone trackers, the one I made and the Chinese clones should work with everything, even DK2 demos, "however" that also seems to depend on your video card, it seems that some stuff needs DX11, apparently most of the DK2 demos I happened to download and try needed DX11 :? , so if you have an older video card some of the demos and software may unexpectedly crash or not run, another problem I was facing and did not realise :lol:


For some of the Oculus Rift games and demos you will need the "Oculus Runtime for Windows" get that over at:

https://developer.oculus.com/downloads/

hi my question is more simple, i am using trackIR. the software i tried is vireio, but i cannot get to see dual screen on my HMD. people used the oculus rift software, i tried but it appears to look for Oculus product. i really need idoit proof instructions!!!!

thanks

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

atomdude wrote:
hi my question is more simple, i am using trackIR. the software i tried is vireio, but i cannot get to see dual screen on my HMD. people used the oculus rift software, i tried but it appears to look for Oculus product. i really need idoit proof instructions!!!!

thanks
I have never used trackIR, and its been a long time since I used Vireio Perception, I started with a simple HMD and later decided to make a clone of the Oculus Rift DK1, so its likely that I can't help unless you are trying to make a clone of the Oculus Rift DK1, but maybe asking someone else or asking in the Vireio Perception forum may help.

atomdude
One Eyed Hopeful
Posts: 11
Joined: Tue Sep 10, 2013 6:22 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by atomdude »

will1384 wrote:
atomdude wrote:
hi my question is more simple, i am using trackIR. the software i tried is vireio, but i cannot get to see dual screen on my HMD. people used the oculus rift software, i tried but it appears to look for Oculus product. i really need idoit proof instructions!!!!

thanks
I have never used trackIR, and its been a long time since I used Vireio Perception, I started with a simple HMD and later decided to make a clone of the Oculus Rift DK1, so its likely that I can't help unless you are trying to make a clone of the Oculus Rift DK1, but maybe asking someone else or asking in the Vireio Perception forum may help.
that is even better, hoe then did you make the clone???

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

atomdude wrote:
will1384 wrote:
atomdude wrote:
hi my question is more simple, i am using trackIR. the software i tried is vireio, but i cannot get to see dual screen on my HMD. people used the oculus rift software, i tried but it appears to look for Oculus product. i really need idoit proof instructions!!!!

thanks
I have never used trackIR, and its been a long time since I used Vireio Perception, I started with a simple HMD and later decided to make a clone of the Oculus Rift DK1, so its likely that I can't help unless you are trying to make a clone of the Oculus Rift DK1, but maybe asking someone else or asking in the Vireio Perception forum may help.
that is even better, hoe then did you make the clone???
Its all in this post and over in reddit at:

http://www.reddit.com/r/DIYRift/

and my post on reddit:

http://www.reddit.com/r/DIYRift/comment ... d_parts_7/

all the info is there, its just going to take a lot of reading, basically using the STM32f3DISCOVERY with the firmware found over at:

http://yetifrisstlama.blogspot.com/2014 ... verse.html

and

https://github.com/yetifrisstlama/Focul ... 3DISCOVERY

will allow you to run some DK1 demos, however many demos also require the correct EDID monitor information, so you ether buy a LCD controller pre-programmed with the DK1 EDID, or find a way to program the LCD controller with the DK1 EDID, or bypass the LCD controller's EDID information with a chip between the LCD controller and computer.

Another tracker is the clone DK1 tracker, ether the one I made or something like this:

http://www.ebay.com/itm/DIY-KIT-Oculus- ... 1662990547

this tracker should work with everything, but for many games and demos you will still need the DK1 EDID monitor information just as above.

Daturian
One Eyed Hopeful
Posts: 9
Joined: Wed Feb 04, 2015 5:15 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by Daturian »

Hey will1384... Just want to say thanks for all your efforts here.

I had order all the required pieces about a month and a half ago and sadly, the ST-Link programmer only just arrived on Monday. Before that I spent several hours investigating different ways of trying to program the STM32 board, including using a Raspberry Pi and OpenOCD, I also tried to find something with Arduino as well. Sadly nothing was working as hoped, but it was a great learning experience and it's always fun to tinker. When I finally received the programmer, it was all done in less than a minute.

I breadboarded everything up last night to see if it all works, and for the most part, it does! I'm getting nothing on the display I'm using and I see that I made a mistake in the edit of the EDID which is likely the culprit. The Rift SDK still detected a DK1 screen and the tracker, and the tracking was working within native Rift apps.

I actually used an Arduino to program the EEPROM a few weeks ago and had it hooked up just on it's own through a cut HDMI cable to test it (just the bare essential wires used, none of the data lines) and it came up in windows as the Rift Dk1 screen. There's a tutorial on Adafruit on flashing the EDID EEPROM on one of the displays they sell which pointed me in the right direction, and I modified their code to work with my chip and input my custom EDID hex, but it's finicky.... The program that's running indicates that it's flashing and verified, and then I can do a read of the EDID info from the chip right after the flash, but it's still showing the old flash info. I had the same trouble when I was first messing around with it a few weeks ago and it wasn't until I happened to move some wires around that it worked. I don't know if it's because I'm misunderstanding something about the chip, or maybe I'm not having the pins pulled up correctly as I was able to flash it the one time, but subsequent attempts are turning out fruitless. It also doesn't help that I also disconnected it all after the original flash :?

Either way, thanks again for all of your effort Will1384. My DIY HMD is getting closer and closer to completion :D

will1384
Cross Eyed!
Posts: 113
Joined: Tue May 13, 2014 10:56 pm

Re: Another DIY HMD, cheap build, 7" 1024x600, 5X Loupe lens

Post by will1384 »

Daturian wrote:Hey will1384... Just want to say thanks for all your efforts here.

I had order all the required pieces about a month and a half ago and sadly, the ST-Link programmer only just arrived on Monday. Before that I spent several hours investigating different ways of trying to program the STM32 board, including using a Raspberry Pi and OpenOCD, I also tried to find something with Arduino as well. Sadly nothing was working as hoped, but it was a great learning experience and it's always fun to tinker. When I finally received the programmer, it was all done in less than a minute.

I breadboarded everything up last night to see if it all works, and for the most part, it does! I'm getting nothing on the display I'm using and I see that I made a mistake in the edit of the EDID which is likely the culprit. The Rift SDK still detected a DK1 screen and the tracker, and the tracking was working within native Rift apps.

I actually used an Arduino to program the EEPROM a few weeks ago and had it hooked up just on it's own through a cut HDMI cable to test it (just the bare essential wires used, none of the data lines) and it came up in windows as the Rift Dk1 screen. There's a tutorial on Adafruit on flashing the EDID EEPROM on one of the displays they sell which pointed me in the right direction, and I modified their code to work with my chip and input my custom EDID hex, but it's finicky.... The program that's running indicates that it's flashing and verified, and then I can do a read of the EDID info from the chip right after the flash, but it's still showing the old flash info. I had the same trouble when I was first messing around with it a few weeks ago and it wasn't until I happened to move some wires around that it worked. I don't know if it's because I'm misunderstanding something about the chip, or maybe I'm not having the pins pulled up correctly as I was able to flash it the one time, but subsequent attempts are turning out fruitless. It also doesn't help that I also disconnected it all after the original flash :?

Either way, thanks again for all of your effort Will1384. My DIY HMD is getting closer and closer to completion :D
Thanks.

I have done more than my fair share of researching ways to do the EDID and STM32 stuff, I decided it was better to make it as easy as possible, that saves a lot of pain and frustration, even if you do spend a little more, also planning ahead for modifications and changes helps, if programming with the Arduino keeps acting strange, you could try the cheap CH341A programmer, its under $10.

Something I have run into with chip programmers and their software, is that sometimes they may fail to write to the chip, but say they have, and you could even try to read from the chip and it would show the correct info, but its not working, and the only way to be sure, is to close the software and disconnect the programmer, then reconnect the programmer, and restart the software to test if the chip was correctly written to, I am thinking is just a software bug, but it can cause a lot of frustration, I have even had hardware do the same thing, I would flash a chip on some hardware, I could test and the flash worked, but after a restart or powering off / on the chip would revert back to default, that happened on one of the LCD controllers I was messing with, I would have to disable the chips write protect to make the programming permanent.

Post Reply

Return to “Do it Yourself!”
